We are Manufacturer, Supplier of Load Cell, Batching Systems, Control Panels, PLC Automation, Tank Weighing, Checkweigher, Product Display and Counter, Programmable Load Controller, Pune, Mumbai, Thane, Nashik, Aurangabad, Kolhapur, Sangli, Satara, Solapur,
Nagpur, Amaravati, Ahmednagar, Maharashtra.

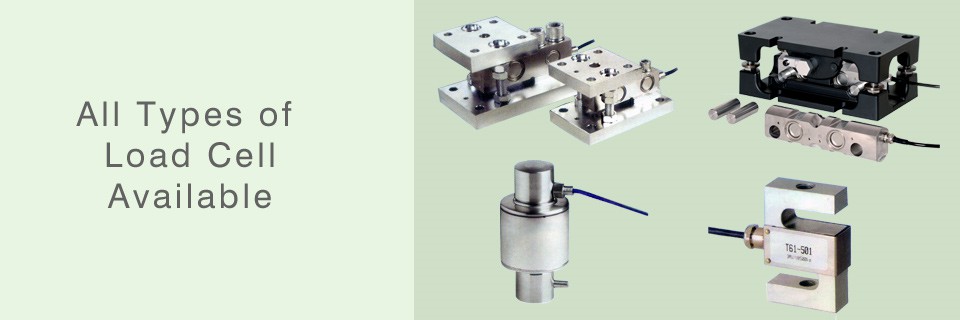

Load Cell

We offer loadcells which are manufactured from top grade materials and in accordance with the latest technology. These loadcells meet the varied needs of various application areas. We offer these loadcells at market leading prices. Some of the specifications are as follows :
• Differrent type of Loadcells available for a different application.
• Capcities 2Kgs – 50Tonnes
• Available in Aluminum/Alloy Tool steel and SS
• Accuracy 0.025 %
• Shear beam, Square beam, ‘S’ type, Compression, Tension and Universal type Loadcells Single Point Platform, Single ended shear beam, double ended shearbeam, Hermeatically sealed loadcells etc. are available.

• Stainless steel load sensor
• Hermetically sealed, fully welded construction
• High durability PU cable
• Sealed to IP68 / IP 69K
• Up to 5 year wrranty
• High Integrity cable entry
• Optional load feet and mounting assemblies
• Available in high temperature version

Shear beam load cells for industrial weighing
capacities 300kg - 5000kg

load-cell-new load-cell-new load-cell-new
request quote
View Details :
This fully welded shear beam load cell is hermetically sealed to IP68/IP69K and can be used in the harshest industrial environments. It is typically used in weigh platforms, tanks and vessel weighing, bag filling machines and conveyors, and is approved to OIML R60 3000 divisions.

350i load cells are available with intrinsically safe ATEX certification for all Gas and Dust zones. ATEX certification for Dust zones 20, 21 and 22 does not require safety barriers, saving substantial cost.

For applications in aggressive environments where stress corrosion or acid attack is an issue, a special parylene coating can be specified as an option. High temperature variants for operation in environments up to 150°C are also available.

• Stainless steel load sensor
• Hermetically sealed, fully welded construction
• High durability PU cable
• Sealed to IP68 / IP69K
• 3000 divisions OIML R60 Class C
• 5 year warranty
• High Integrity cable entry
• Optional load feet and mounting assemblies
• Available in high temperature version
• Available in version

Technical specification :
Technical specification

load-cell-new load-cell-new load-cell-new
request quote
View Details :
This fully welded stainless steel bending beam load cell is hermetically sealed to IP68 / IP69K and can be used in the harshest industrial environments. It is suitable for weighing platforms, bag fillers, belt weighers and tank weighing in the Food Processing, Chemical, Pharmaceutical and general Bulk Handling industries. T66 load cells are available with intrinsically safe ATEX certification for all Gas and Dust zones. ATEX certification for Dust zones 20, 21 and 22 does not require safety barriers, saving substantial cost. For applications in aggressive environments where stress corrosion or acid attack is an issue, a special parylene coating can be specified as an option. High temperature variants for operation in environments up to 150˚C are also available.

  Technical Specification :
• Stainless steel load sensor
• Hermetically sealed, fully welded construction
• High durability PU cable
• Sealed to IP68 / IP69K
• 3000 divisions OIML R60 Class C
• 5 year warranty
• High Integrity cable entry
• 6 wire configuration (with sense wires)
• Available in high temperature version
Technical Specification




Request a Quote
View Details :
This folded bending beam load cell is manufactured from high quality tool steel, and fully sealed to IP67. Although normally utilised in tension, given the suitable adaptors and the appropriate application, it is possible to use the cell in compression or even in a bi-directional manner. The cell is typically used in tank and vessel weighing, bag filling machines, concrete batching equipment and conveyors.

  Technical Specification :
• High quality steel load sensor
• Fully potted & sealed to IP67
• Corrosion resistant
• Simple low cost installation
• Industry standard configuration
• 3 year warranty
• Suitable for use in tension, compression or bi-directional manner
• Optional proof tested eyebolts or rod end bearings
Technical Specification


Load Cell New Load Cell New Load Cell New

Load Cell New Load Cell New

Request a Quote
