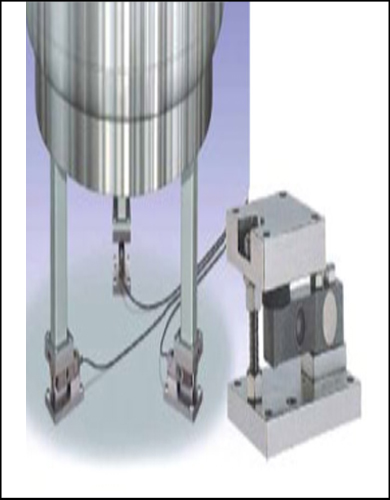

Gurusavli offers simple, rugged, accurate and reliable hoppers, tank and silo weighing systems. These are available from 10 Kg to 300 tons capacity range depending upon singles load cell arrangement or multiple load cells. For simple and economical applications systems can be designed on single load cells. This type of applications are more suitable for liquid weighing or in case where only level indication is required. The digital weight indicator can be calibrated in terms of level measurement.

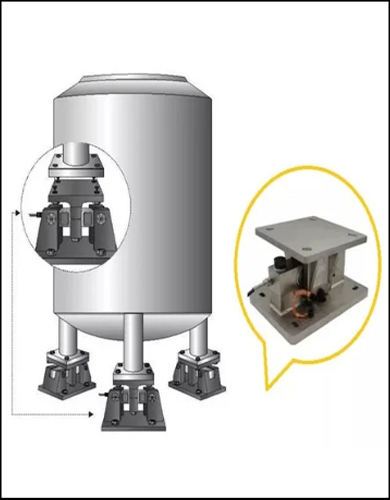

Generally three load cell mounting arrangement systems are suitable for hopper & silo weighing systems. For horizontal tank four load cell systems are quite suitable. For out door applications hermetically sealed load cells are preferred.
The tank should be provided with flexible connections for inlet and outlet piping in order to avoid direct weight transfer on tank. The indicators available are either wall mounting type or panel mounting type.
|
